How to Mount a Solar Area Light on a Wooden Post
Wooden post · Solar area light planning
Already have a wooden post? Start there—but check the whole installation before choosing a light.
A fence post beside a gravel driveway, a ranch gate post, and a tall standalone wood pole are very different supports. This guide helps you decide whether your existing post is worth evaluating for Solaraluma's 2550LM or 3500LM solar area light.
Recognize your setup
What kind of wooden post do you already have?
These four common rural-property situations call for different decisions. The photos show post types—not approved Solaraluma installations or proof of a post's load capacity.
Will a 4×4 or 6×6 post hold a solar street light?
There is no honest yes-or-no answer from the lumber label alone. Two posts sold as the same size can differ in height above the ground, wood condition, how they were set, and the loads they already carry. A short fence post attached to rails is not automatically a suitable tall lighting post. Likewise, a substantial gate or barn column is not automatically available for new attachments.
Check the post itself
Look for leaning, wobble, splitting, soft or decayed wood near the ground, loose connections, and evidence of movement around the footing. Measure the usable height and actual mounting surface.
Check the proposed installation
Consider the complete light, arm, brackets and—on the 3500LM—the separate solar panel. Note which parts will attach to the same post and how far the arm projects from it.
Practical decision: If you cannot confirm the post's condition or how it is supported at ground level, have the proposed mounting point assessed before adding a heavy or high-mounted fixture. A different post or mounting location may be the simpler solution.
Why the weight on the box does not answer the question
A shipping weight includes packaging and is not the weight installed at the top of a post. Even a measured fixture weight would answer only part of the question. The arm extends the fixture away from the post, while the light and any panel present surfaces to the wind. A taller mounting position can increase the force at the base of the post.
- Vertical load: light body, arm, brackets, and any panel attached to that post.
- Side load: wind pushing against the exposed light and solar panel.
- Existing load: a gate, fence, barn roof, or another fixture the post already supports.
- Support below ground: the post and its foundation must remain stable, not just the fasteners at the top.
For an exact capacity check: ask for the actual installed component weights and mounting dimensions, then have the post and footing assessed for the site. We do not publish a universal “4×4 holds X pounds” answer because it would ignore height, condition and wind exposure.
Choose the right layout
2550LM or 3500LM: what changes on a wooden post?

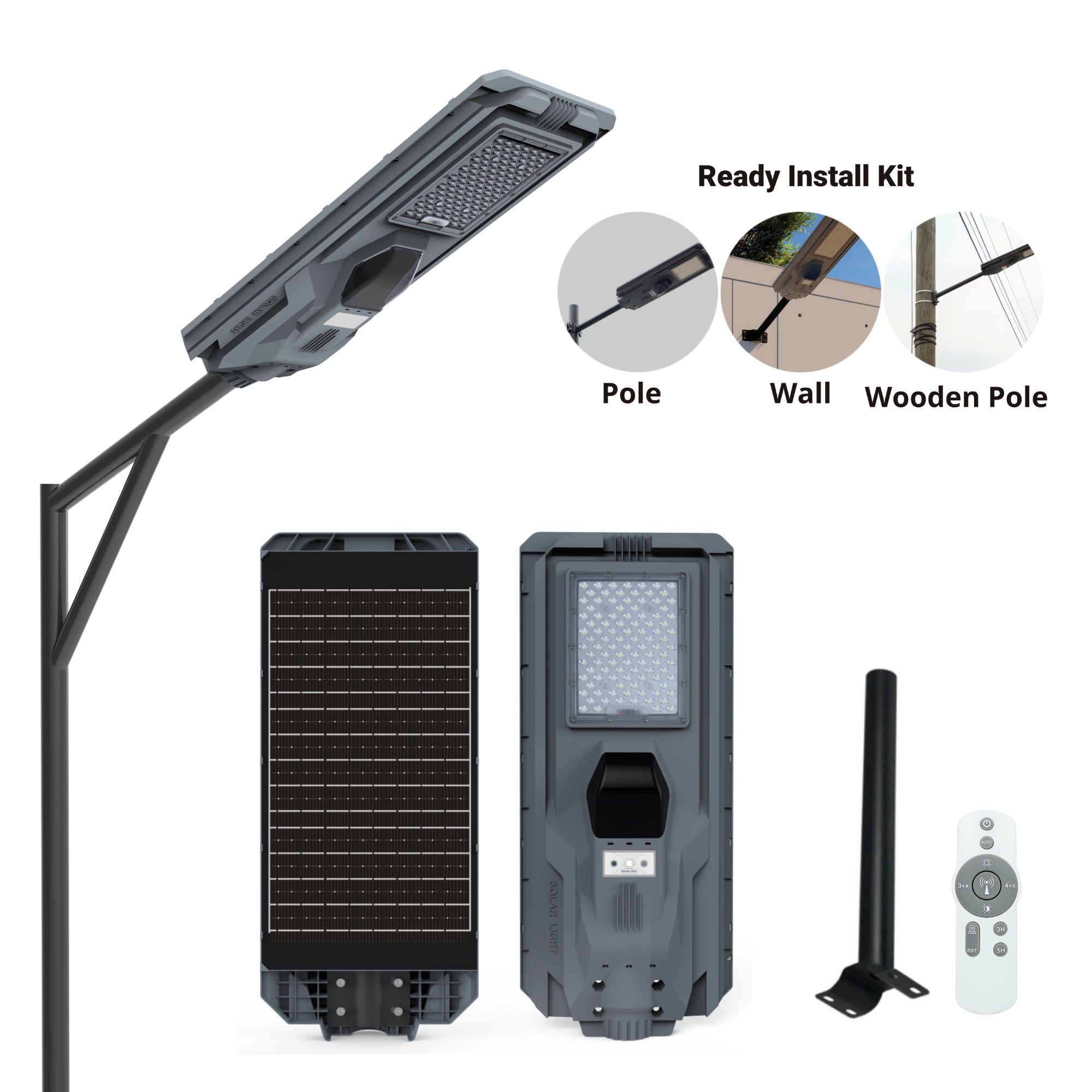

2550LM Solar Street Light
Consider this model for a suitable wooden post beside a farm driveway, ranch gate, or barn approach. Its solar panel is integrated with the light, so the chosen post must also provide a good location for sunlight. The mounting arm is straight; do not plan on bending it to correct a poor position.
Integrated panel · Suggested mounting height: 12–16 ft · Flexible nighttime modes
View the 2550LM Light →

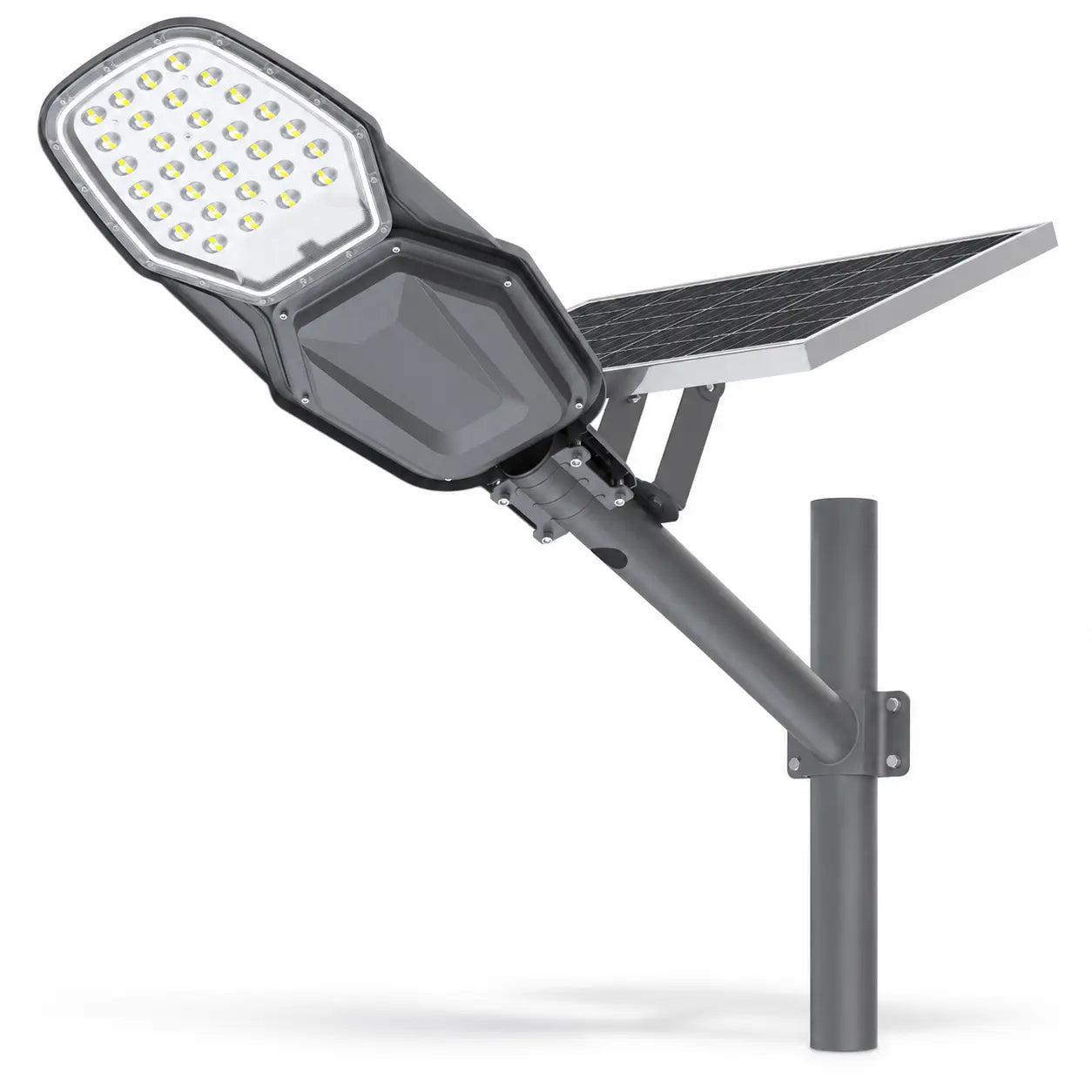

3500LM Heavy-Duty Solar Street Light
Consider this model for a wider or more demanding property area when a suitable structure and mounting height are available. Its 60W panel is separate from the die-cast aluminum light body. Plan where each component will mount; if both attach to one post, that post must be evaluated for the complete layout.
Separate 60W panel · Suggested mounting height: 16–26 ft · Steady light, no motion sensor
View the 3500LM Light →A higher lumen number does not make a short or weak post suitable. First decide where the light needs to reach, then check whether the existing structure can support the selected installation at the recommended height.
A practical check before you mount anything
- Photograph the full post and its base. Include the fence, gate or building it connects to, plus a close-up of the wood near the ground.
- Record the height and post size. Measure from ground level to the proposed mounting point and note whether the post moves when pushed.
- Choose the area to illuminate. Measure the driveway width, gate opening or yard. Confirm that the fixture can point toward the useful area without obstructing vehicles or normal property use.
- Check sunlight. The 2550LM's integrated panel needs a sunny mounting location. For the 3500LM, plan a suitable position for its separate panel and a protected cable path.
- Confirm the structure and attachment. Match the installation hardware to the actual post and product instructions. For a tall post, existing gate or barn support, or an exposed site, arrange an on-site structural check when the capacity is uncertain.
- Test and install the light. Follow the model-specific manual and check the assembly before lifting it into place. For the 2550LM, see the complete installation guide.
When is a new post the better starting point?
If the only available fence post is short, unstable, deteriorated, or shaded, it may be easier to plan a dedicated post in the right location. The same applies when the preferred 3500LM position requires a taller mounting point than your existing structure provides. A new post still needs to be selected and set for its installed components and local conditions.
If a post belongs to a utility or another property owner, confirm that you have permission to attach equipment before planning around it. Do not assume an existing pole is available simply because it stands near your driveway.
Questions property owners ask
Can I mount a 2550LM solar light on my existing fence post?
Possibly, if the post is sound, securely supported, appropriately located and tall enough for your lighting goal. Many ordinary fence posts are too short for the 2550LM's suggested 12–16 ft mounting height. Share photos and dimensions before relying on a particular post.
Is a 6×6 wooden post strong enough for the 3500LM?
A 6×6 label alone cannot establish capacity. The answer depends on the post's unsupported height, wood condition, ground support, the light arm, where the separate panel mounts and site wind exposure. Have the complete layout checked when these details are unknown.
Is the 3500LM shipping weight the amount the post must hold?
No. Box weight includes packaging and may exclude how other components are positioned after installation. A mounting assessment should use the actual weights and positions of the light, arm, brackets and any panel attached to the post, along with wind exposure.
Can I use the wooden post that holds my ranch gate?
Maybe, but the post already carries the gate and the forces from opening and closing it. Check its condition, existing load, hinge area, mounting space and vehicle clearance. A separate lighting post may give you a better location.
What if my wooden post is lower than 12 ft?
Do not assume an arm adds enough height or that the expected driveway coverage will remain the same. Consider a different post location or a properly planned taller support, and choose the lighting layout for the visibility you actually need.
Does the 3500LM solar panel have to mount on the same wooden post?
Its panel is separate, so its placement can be planned independently within the product's installation limits. Confirm a secure sunny mounting location, the connection route and the support for each component. If the panel shares the post, include it in the post assessment.
The wooden-post photos illustrate common property structures. They do not show verified mounting capacities or completed Solaraluma installations.
